In many industrial and consumer applications, selecting the right material can significantly affect durability, efficiency, and long-term performance. Thermoset materials such as epoxies, phenolics, and certain polyurethanes have been widely used in manufacturing due to their strength and stability. However, newer materials like thermoplastic polyurethane (TPU) are becoming increasingly popular due to their flexibility, recyclability, and overall versatility.
For companies and consumers seeking durable, adaptable materials, TPU offers several advantages over traditional thermosets. Understanding these benefits can help you choose the right material for seals, gaskets, industrial components, and many other applications.
Understanding Thermoset Materials
Thermosets are polymers that permanently cure through heat or chemical reactions. Once they are molded and hardened, they cannot be remelted or reshaped. This characteristic gives thermosets excellent structural stability and heat resistance, which is why they are commonly used in electrical insulation, automotive components, adhesives, and industrial coatings.
However, this permanent structure also creates limitations. If a thermoset component becomes damaged or worn, it cannot be easily reprocessed or recycled. In many cases, the entire component must be replaced, which can increase long-term costs and material waste.
As manufacturing technologies advance, many industries are shifting toward materials that offer similar performance with greater flexibility and sustainability. TPU is one of the materials leading this shift.
What Is Thermoplastic Polyurethane (TPU)?
TPU is a highly versatile elastomer that combines the strength of plastic with the flexibility of rubber. It is classified as a thermoplastic, meaning it can be melted and reshaped multiple times without losing its core properties. This characteristic allows manufacturers to process TPU using techniques such as injection molding, extrusion, and 3D printing.
TPU is known for its excellent mechanical strength, durability, and resistance to wear. The material’s molecular structure allows it to maintain flexibility while still providing high load-bearing capacity and toughness.
Because of these characteristics, TPU is widely used across industries, including automotive, medical devices, footwear, electronics, and industrial sealing systems.
Key Advantages of TPU Over Standard Thermosets
1. Recyclability and Sustainability
One of the biggest advantages of TPU is its recyclability. Unlike thermosets, which permanently harden during curing, TPU can be reheated and reprocessed multiple times. This allows manufacturers to reuse material waste from production and reduce environmental impact.
For businesses focused on sustainability, this ability to recycle and reuse materials can significantly reduce manufacturing waste and overall costs.
2. Exceptional Flexibility and Elasticity
TPU offers a unique combination of flexibility and strength. It behaves similarly to rubber while still maintaining the durability of plastic. This flexibility allows TPU components to bend, stretch, and return to their original shape without cracking or breaking.
Thermoset materials are typically more rigid once cured. While this rigidity can be useful in certain structural applications, it may not perform as well in dynamic environments where movement or vibration is common.
3. Superior Abrasion and Wear Resistance
TPU is well known for its excellent abrasion resistance. This means it can withstand repeated friction and contact without quickly wearing down. TPU is commonly used in industrial applications, including conveyor belts, seals, wheels, and protective coatings.
For applications that experience frequent mechanical stress, this durability can extend product lifespan and reduce maintenance costs.
4. Strong Chemical and Oil Resistance
In many industrial environments, materials must withstand exposure to oils, fuels, solvents, and other chemicals. TPU performs exceptionally well in these conditions because it is highly resistant to many chemical substances.
This resistance makes TPU an ideal choice for components such as hoses, gaskets, and protective coverings used in auto, manufacturing, and chemical processing industries.
5. Better Performance in Extreme Temperatures
TPU maintains flexibility even in cold temperatures. Depending on its formulation, it can remain elastic below –35°C while also tolerating higher temperatures
This wide operating range allows TPU components to perform reliably in both indoor and outdoor environments, making them suitable for equipment exposed to changing weather or demanding industrial conditions.
6. Greater Design and Manufacturing Flexibility
Because TPU is a thermoplastic, it can be processed using multiple manufacturing methods, including injection molding, extrusion, and blow molding. This versatility allows engineers to design complex shapes and components with high precision.
Thermosets, on the other hand, often require longer curing processes and specialized manufacturing conditions, which can limit design flexibility.
Why Many Industries Are Choosing TPU
From a consumer and industrial perspective, TPU provides a balanced combination of durability, flexibility, and sustainability. Manufacturers benefit from easier processing and recyclability, while end users gain longer-lasting products that perform reliably under demanding conditions.
While thermoset materials still have an important place in high-temperature and rigid structural applications, TPU continues to expand across industries due to its adaptability and cost-effective performance.
For applications that require strength, flexibility, and long-term durability, TPU is often a superior alternative to traditional thermoset materials.
Looking for high-quality sealing solutions and durable components? Real Seal offers a range of products designed for long-term performance across demanding applications. Visit Real Seal to explore available options and learn more about how the right material choice can improve reliability and efficiency.
When designing or maintaining mechanical systems, choosing the right materials is critical to performance, durability, and long-term cost efficiency. Two of the most commonly used materials in engineered mechanical components are thermoplastics and rubber. While both offer valuable benefits, they serve different purposes depending on the application. Understanding the differences between thermoplastics and rubber components can help you make informed decisions that improve reliability and extend the life of your equipment.
For manufacturers, engineers, and maintenance teams, selecting the right material is not just about preference—it’s about matching material properties to real-world operating conditions. Knowing when to use thermoplastics versus rubber can make all the difference in performance and safety.
What Are Thermoplastic Components?
Thermoplastics are polymer-based materials that soften and become moldable when heated and harden when cooled. This process can be repeated multiple times without degrading the material, making thermoplastics highly versatile in engineered applications. Common thermoplastics include nylon, PTFE, polyethylene, polypropylene, and polycarbonate.
Engineered thermoplastic components are valued for their strength, precision, and resistance to wear. They are often used in applications where rigidity, dimensional stability, and low friction are essential. Thermoplastics also perform well in environments exposed to chemicals, moisture, and varying temperatures.
Advantages of Thermoplastic Components
Thermoplastic materials offer several benefits in mechanical systems, including:
High strength-to-weight ratio
Excellent chemical and corrosion resistance
Low friction and wear resistance
Tight tolerances and consistent performance
Ability to withstand high temperatures in many applications
Because of these properties, thermoplastics are commonly used for bushings, bearings, seals, wear pads, guides, and structural components. They are especially effective in applications requiring precision and durability over long service intervals.
What Are Rubber Components?
Rubber components are made from elastomeric materials designed to stretch, compress, and return to their original shape. Natural rubber and synthetic rubbers such as EPDM, silicone, nitrile, and neoprene are widely used across industries.
Rubber’s flexibility makes it ideal for applications requiring sealing, vibration isolation, and shock absorption. Rubber components can conform to irregular surfaces, making them highly effective for preventing leaks and reducing noise or movement.
Advantages of Rubber Components
Rubber materials provide benefits that rigid materials cannot, including:
Exceptional flexibility and elasticity
Effective sealing under pressure
Vibration and noise dampening
Impact resistance
Adaptability to uneven or moving surfaces

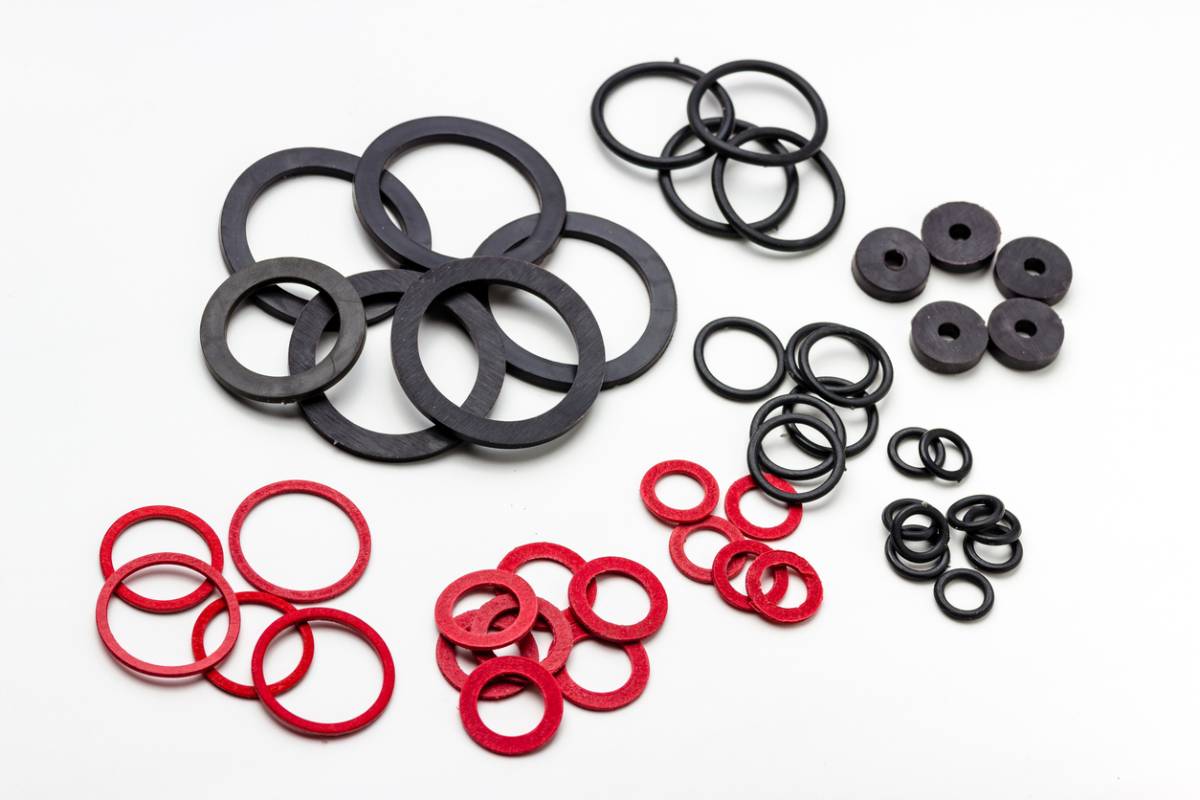

Rubber components are commonly used for gaskets, O-rings, hoses, vibration mounts, seals, and protective covers. In dynamic environments where movement or compression is constant, rubber excels.
When to Use Thermoplastics
Thermoplastics are the preferred choice when applications require strength, precision, and wear resistance. They perform well in systems where components must maintain shape under load and resist abrasion over time. Thermoplastics are also ideal for environments that involve chemicals, oils, or moisture, as these conditions can degrade other materials.
If your application requires tight tolerances, low friction, or long-term dimensional stability, engineered thermoplastic components are often the best solution.
When to Use Rubber Components
Rubber is the better choice when flexibility and sealing performance are critical. Applications involving vibration, impact, or thermal expansion benefit from rubber’s ability to absorb energy and maintain a tight seal. Rubber components also excel in preventing leaks in systems with pressure fluctuations or movement.
If your application involves dynamic motion, noise reduction, or sealing against fluids or gases, rubber components are typically the most effective option.
Choosing the Right Material for Your Application
In many systems, thermoplastics and rubber are used together to maximize performance. For example, a thermoplastic housing may provide structural support while a rubber seal ensures leak prevention. Selecting the right material requires evaluating operating temperature, chemical exposure, mechanical stress, and environmental conditions.
Working with an experienced provider of engineered thermoplastic and rubber mechanical components ensures you receive solutions tailored to your specific needs. Expert guidance helps avoid premature failure and reduces maintenance costs.
Partner With a Trusted Component Solutions Provider
Choosing between thermoplastics and rubber components doesn’t have to be complicated. Our team specializes in engineered thermoplastic and rubber mechanical components designed for performance, reliability, and longevity. Whether you need precision-molded thermoplastics, high-performance rubber seals, or a custom solution, we’re here to help.
Contact Real Seal today to discuss your application and discover the right material solution to keep your systems running efficiently and reliably.
Using engineered thermoplastic mechanical components is at the forefront of modern technology. However, researchers continue to explore newer, better materials for future production. So what future materials will seals be made from?
What Future Materials Will Seals Be Made From?
We have come a long way from the first seals made using materials like resins, beeswax, and even old rope. Modern thermoplastic materials are built to last and withstand extreme temperatures without failing. But there is always room for improvement.
What Future Materials Would Require
Some requirements for future materials will not change much, while others will change based on current needs and regulations. Industries may change, but
Top factors being:
Resistance to extreme conditions of heat, pressure, and chemicals
Meeting environmental regulations
Focusing on recyclability and lower carbon footprints
Enhanced performance in EVs, aerospace, and industrial settings.
Surviving Extreme Conditions
As aerospace efforts expand, we need materials that can survive extreme environments. To this end, materials like advanced composites and ceramics will become central. These materials can handle temperature and pressure extremes while also showing excellent chemical resistance.
Additionally, expect to see more high-performance elastomers. These next-gen synthetic rubbers are designed for advantages like:
Enhanced thermal stability
Excellent elasticity
Improved performance in electric vehicle systems
A Push for Sustainability
Future sealing materials will likely need to be from sustainable resources. Currently, research is underway for developing bio-based polymers and using recycled materials. Both of these options offer more sustainable paths forward, while also meeting the durability requirements for safe seals.
Plant-derived polymers in particular open the door for biodegradable options. Currently, petroleum-based products are the most common. While extremely durable and cheap to make, these have a lifespan measured in millenia before they would begin decomposing.
Regulation Shifts
Regulation changes will encourage a shift to nonfluorinated materials. Moving away from PFAS (commonly known as “forever chemicals”) will be a major shift moving forward. Alternatives may take the spotlight, such as specialized graphite and polyphenylene sulfide (PPS). Legislation likely will continue in these directions, ensuring more sustainable and environmentally aware practices in the near (and hopefully far) future.
Emerging Technologies
Silicon Carbide
Current research shows that materials with silicon carbide demonstrate several benefits, including:
Improved thermal conductivity
Better dissipation of heat-generated friction at sealing interfaces
Enhanced thermal shock resistance
Dry Sealing Technology
Dry-running seals stand out as a fundamental change in approaches to mechanical sealing. Historically, most chemical and process industry applications relied on seals lubricated by barrier fluids. Modern efforts are seeing advances in self-lubricating materials that have made dry-sealing possible and effective for many environments.
3D Printing on Center Stage
Additive manufacturing (also known as 3D printing) will enable complex, customized seal designs on smaller scales. This cuts down on waist while maintaining optimized performance due to customization.
Smart Seals & Coatings
Integrating elements like sensors and surface treatments will improve seal health. Smart monitoring can cut down on seal failure to improve real-time efficiency.
Liquid Sealants
Liquid seal alternatives are growing in use, particularly in EV battery packs. Research continues to explore expanded utility versus traditional gaskets.
Water-Lubricated Systems
PFAS-free seals compatible with water-based lubricants are growing. These avoid depositing forever chemicals while also maintaining high efficiency.
Always at the Forefront of Seal Materials
At Real Seal, our specialty seals are always made using the latest advances in manufacturing. As materials evolve, so too do our practices and products. Reach out today for premium seals that handle all manner of environments. Whatever the future holds, Real Seal will continue to remain a top provide of the best-functioning seals on the market.

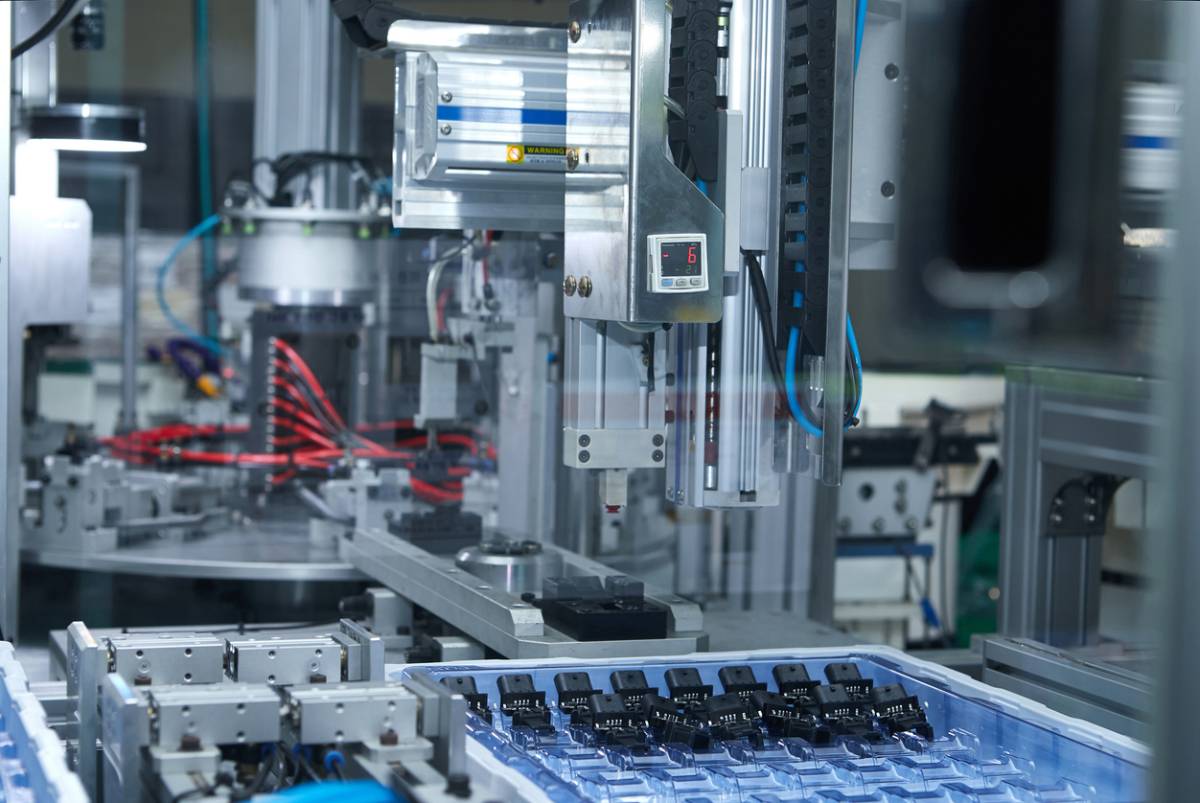

Injection molding is a manufacturing process in which molten material—typically thermoplastic or rubber—is injected into a custom-designed mold under high pressure. Once the material fills the mold cavity, it cools and solidifies into the desired shape. The mold then opens, and the finished part is ejected, ready for use or further finishing.
This process is ideal for producing complex parts with tight tolerances, smooth surface finishes, and consistent dimensions. Because molds are engineered with precision, injection molding ensures repeatable results across large production runs, making it an efficient solution for both high-volume and specialized component manufacturing.
How the Injection Molding Process Works
The injection molding process follows a series of controlled steps:
Material Preparation – Raw material, usually in pellet or granule form, is fed into the molding machine.
Melting and Injection – The material is heated to a molten state and then injected into the mold at high pressure.
Cooling and Solidifying – Inside the mold, the material cools and takes on the mold’s exact shape.
Ejection – Once solidified, the mold opens, and the finished component is released.
Inspection and Finishing – Parts are inspected for quality and may undergo secondary processes if needed.
This controlled approach ensures uniformity and minimizes defects, which is critical for mechanical components and sealing solutions that must perform reliably under pressure, heat, and motion.
Materials Commonly Used in Injection Molding
Injection molding supports a wide range of materials, allowing manufacturers to tailor components to specific performance needs. Common materials include:
Thermoplastics such as polyethylene, polypropylene, nylon, and ABS
Engineering plastics designed for strength, heat resistance, and chemical durability
Elastomers and rubber compounds for flexible seals, gaskets, and vibration-dampening parts
For seal products and mechanical components, selecting the right material is essential. Factors such as temperature resistance, chemical exposure, friction, and compression requirements all play a role in determining optimal material performance.
Why Injection Molding Is Ideal for Seal and Mechanical Components
Injection molding offers several advantages that make it especially valuable for producing seal products and mechanical component goods:
High Precision – Tight tolerances ensure reliable performance and proper fit
Consistency – Identical parts are produced from the same mold, reducing variation
Scalability – Efficient for both prototyping and large-scale production
Design Flexibility – Complex shapes and integrated features are easily achievable
Material Efficiency – Minimal waste compared to other manufacturing methods
These benefits are particularly important for seals and mechanical components, where even minor inconsistencies can affect system performance or cause premature failure.
Industries That Rely on Injection Molding
Injection molding is used across many industries, including automotive, aerospace, medical devices, industrial equipment, electronics, and consumer products. In each of these sectors, molded components must meet strict quality and durability standards.
For companies that manufacture seal products and mechanical components, injection molding supports the production of O-rings, gaskets, housings, bushings, connectors, and custom-engineered parts designed for demanding applications.
Partnering with the Right Injection Molding Expert
Successful injection molding depends on more than just equipment. This procedure requires material expertise, precision tooling, and a deep understanding of application requirements. A knowledgeable manufacturing partner can help you choose the right materials, optimize mold design, and ensure consistent quality throughout production.
Your Trusted Source for Engineered Components
As a Seal Products and Mechanical Component Goods Company, Real Seal specializes in delivering high-quality, injection-molded components engineered for performance and reliability. From material selection to production and quality assurance, our team is committed to helping you achieve durable, cost-effective solutions tailored to your needs.
If you’re exploring injection molding for your next project or looking to improve existing components, contact us today to learn how our expertise can support your manufacturing goals.
Seals, although often overlooked, play an essential role in protecting equipment, maintaining efficiency, and preventing costly failures. They are used in a wide range of applications, from industrial machinery to commercial building systems. The right seal ensures containment, pressure control, and even environmental protection. One of the most important decisions project owners and facility managers need to make is customization vs. off-the-shelf: when do you need a custom seal? It is crucial to understand the differences between off–the–shelf and specialty seals. Understanding the difference between the two will help you know when customization is necessary. This can save you time, money, and long-term operational problems.
Customization VS. Off-the-Shelf: When Do You Need a Custom Seal?
The Appeal of the Off-the-Shelf Seals
Off-the-shelf seals are designed for standard applications. They are readily accessible because they are pre-manufactured. Easily available and cost-effective, they are ideal for systems operating under predictable conditions.
These seals work best when:
The dimensions of the equipment are standard
Operating temperatures and pressures fall within the normal range
Fluids or gases are well-known and non-corrosive
Fast installation and availability are important
Off-the-shelf seals provide reliable performance for many HVAC systems, valves, standard pumps, and general machinery without the additional expense of customization.
These seals are also easier to source, as they are perfect for routine maintenance and repairs, helping decrease downtime.
The problem starts when systems become more complicated.
When Off-the-Shelf Is No Longer Enough
Off-the-shelf seals are generic, and their limitations become more evident as applications become more complex.
If the seal does not fit properly or is chemically incompatible, it could cause leaks, accelerate wear, lead to contamination, or result in regulatory violations, particularly in industries that must comply with strict environmental or safety standards.
In these instances, a custom seal is necessary.
Situation that Calls for a Custom Seal
1. Extreme Operating Conditions
When machines operate at very low or very high temperatures, under extreme pressure, or in vacuum conditions, off-the-shelf seals may quickly degrade or fail altogether. Meanwhile, custom seals can withstand these extreme conditions because they have been designed and engineered with specific materials for these extremes
2. Chemical or Environmental Exposure
When working with solvents, aggressive materials, fuels, or hazardous substances, you need chemically compatible seals. With a custom seal made from compatible materials, swelling, cracking, breakdown, leaks, and environmental damage can be avoided.
3. Non-Standard Equipment Design
Standard seals are usually incompatible with older machines and custom-built systems because their dimensions do not align with standard seal sizes. Forcing an approximate fit can compromise performance, so a custom seal is a wiser choice.
4. Regulatory and Compliance Requirements
There are industries subject to strict regulations, such as oil and gas, pharmaceuticals, manufacturing, and wastewater management. The use of custom-designed seals can help companies reduce liability and avoid fines for leakage or system failures.
5. High Cost of Failure or Downtime
When equipment fails, it can cause production shutdowns, safety risks, or significant financial loss. With the help of custom seals, equipment can have longer service life, improved performance, and reduced maintenance frequency.
Cost Consideration: Short-Term VS Long-Term
At first, you may think that custom seals are more expensive than off-the-shelf options. However, when you only look at the upfront cost, you might be misled. When a standard seal fails prematurely, you might replace it repeatedly. It can also cause system damage, environmental cleanup, or insurance claims.
On the contrary, custom seals are especially designed for a particular application. This results in:
Longer lifespan
Improved system efficiency
Reduced risks of leaks or failures
Lower expenses
Making the Right Choice
Ultimately, understanding your application is key to making the right choice between custom and off-the-shelf seals.
Off-the-shelf seals are practical and efficient for standard, low-risk systems. However, for unique, demanding, or regulated applications, custom seals should not be seen as a luxury but as a necessity.
Choose the Seal for Your Application
Protect your equipment and bottom line with the right sealing solution.. Talk to us today and make an informed decision.
Small components, such as seals, play a major role in keeping industrial systems running smoothly. Whether it is an HVAC unit, a hydraulic system, an automotive engine, or a manufacturing line, seals, including specialty seals designed for demanding applications, prevent leaks, maintain pressure, and protect equipment from contaminants. To prevent breakdowns, minimize downtimes, and extend the life of your machinery, it is important to understand how temperature and pressure affect seal performance.
How Temperature and Pressure Affect Seal Performance
Temperature
One of the biggest factors that influences how well a seal performs is temperature. Regardless of material, whether rubber, silicone, PTFE, nitrile, or fluorocarbon, there is a specific temperature range in which it works best. Working outside this window can cause rapid deterioration.
1. Heat Can Accelerate Material Degradation: High temperatures cause seal materials to weaken over time. Sustained exposure to heat can lead to:
Softening – can result in extrusion under pressure
Hardening – makes the seal brittle and prone to cracking
Loss of elasticity – results in poor sealing performance
Chemical breakdown – particularly in oils, fuels, and chemical processing applications
For instance, a nitrile seal is expected to perform excellently at moderate temperatures. But in a high-heat environment like that found in engine components, it can quickly degrade.
2. Cold Temperatures Can Cause Shrinkage and Embrittlement
Low temperatures can make many materials rigid. This can cause:
Seal shrinkage, which can lead to gaps
Reduced flexibility, reducing the seal’s ability to maintain contact
Cracking, especially when there are rapid temperature drops
3. Rapid Temperature Changes Leading to Thermal Shock
Frequent heating and cooling may cause seals to expand and contract repeatedly. This can cause stress on the material, reduce its lifespan, and increase the risk of leaks. Compressors, industrial ovens, and similar systems should therefore use seals that withstand thermal cycling without deformation.
Pressure
You want your seals to maintain a tight, leak-free barrier. Pressure is the determining factor in how well your seals perform. However, while there are specific temperature ranges, they are also designed for specific pressure ranges. Exceeding those limits can mean failure.
High pressure Can Lead to Extrusion: When seals are exposed to pressure that they are not designed to withstand, the material can be pushed or extruded, resulting in:
Material deformation
Rapid wear
Complete seal blowout
Low Pressure Can Lead to Insufficient Seal Compression: Low pressure can prevent seals from fully compressing, leading to leaks. This is common in pneumatic systems, such as industrial automation, dental drills, air brakes on buses and trains, and tools like nail guns.
Pressure Fluctuations Increase Wear: Pumps, valves, hydraulics, and other equipment that frequently switch between high and low pressure require seals with high resistance and durability.
Combined Effects of Temperature and Pressure Together
Real-world operations usually require simultaneous temperature and pressure. The problem with them working together is that their effects are amplified.
High temperature + high pressure: This leads to the acceleration of chemical and mechanical wear
Low temperature + high pressure: Low temperature makes seals less flexible and slightly shrinks. This is when the seal can easily crack or split in high temperatures because it cannot deform to relieve stress.
Wide temperature fluctuations + pressure changes: This creates complex stress patterns that lead to loss of elasticity, material fatigue, microcracks, and leakage.
How to Improve Seal Performance in Varying Conditions
Here are some steps you can take to help ensure seals last as long as possible.
Choose the appropriate material for both temperature and pressure ranges.
Use backup rings for high-pressure applications.
Avoid exposing seals to sudden extreme temperature shifts if you can help it.
Follow the manufacturer’s instructions and recommendations.
Schedule a regular inspection to catch wear and hardening before they become bigger problems.
Ensure Your Machinery Performs at Its Best
Seals may be small, but they have a big role in ensuring that your systems work smoothly. Two of the most critical factors that affect their performance are temperature and pressure. By understanding how they influence material behavior, you can choose the right seal materials for the operating environment.
If you have a machine that operates under demanding temperature and pressure conditions, selecting the right sealing solution is crucial. Whether you are looking for durable elastomers, specialty seals, or an engineered thermoplastic mechanical component designed for extreme environments, we will help you find the perfect match for your application.
Make sure your machine performs at its best, no matter the condition. Contact us today to get expert guidance.
Industrial machinery relies on countless components working in harmony to maintain optimal performance and safety. Among these critical parts, specialty seals and engineered thermoplastic mechanical components play significant roles in containing fluids, preventing contamination, and maintaining system pressure. When these seals begin to fail, they send warning signals that operators and maintenance teams must recognize quickly. Early detection of seal failure prevents catastrophic equipment damage, reduces downtime, and protects worker safety.
Visual Fluid Leak
The most apparent indicator of seal failure appears as visible fluid around the seal area. Small droplets forming along shaft exits or housing joints suggest the seal no longer maintains proper contact with mating surfaces. Fresh fluid accumulation indicates active leaking, while dried residue shows intermittent or past leakage that may worsen over time.
Vibration and Performance Changes
High vibration levels frequently accompany seal deterioration. Imbalances are created when mechanical components become damaged or wear unevenly. Vibration monitoring systems detect these changes through special components mounted near critical seals. Poor equipment performance is often an indication of seal failure. Pumps may lose pressure as seals allow internal leakage between stages. Hydraulic cylinders move more slowly or lose position-holding capability when seals leak. Failing seals create additional drag, causing motors to burn more power. These performance changes may be difficult to notice without baseline measurements for comparison, as changes often appear gradually.
Degradation of Material
Physical inspection of seals during maintenance can reveal the condition of the material. Hardening indicates that seal materials have lost important properties due to heat, chemical exposure, or age. This hardening reduces the seal’s ability to conform to surface irregularities, allowing the development of leakage paths. Typically, fine lines of cracking begin where stress concentrations exist. This cracking can appear due to thermal cycling, ozone exposure, and chemical incompatibility. Specialty seals are designed to withstand the demanding environments that cause other materials to degrade.
Evidence of Contamination
Foreign material around seals indicates they are no longer doing their job effectively. The accumulation of dirt, dust, or debris is evidence that they have lost their ability to prevent contamination. This contamination eventually reaches internal components, accelerating wear throughout the system. Always be observing for discolored fluid and water in oil-based systems. These issues point to failing seals.
Pressure Loss
Any sign of pressure change could indicate a failing seal. Some systems incorporate sensors that continuously monitor sealed cavities. Deviations from standard pressure patterns trigger alarms before complete seal failure occurs. These systems minimize unplanned downtime by scheduling seal replacement during convenient maintenance windows.
Installation
Not all seal issues are the result of wear or age. Improper installation creates failure symptoms that appear indicative of normal wearout. Careless installation can cause twisted seals and damaged seal lips. Scratches to the shafts, acquired during installation, can create leak paths regardless of seal replacement. Some design flaws can create symptoms that mimic the signs of a seal failure. If maintenance logs show repeated seal replacements in the same areas, it’s worth investigating further. Consider upgrading to specialty seals designed to withstand the operating conditions for the job.
Preventative Measures and Monitoring
Implementing seal monitoring programs catches problems early. Scheduled visual inspections during routine maintenance can help identify developing issues. Keeping a detailed record of observations creates trend data showing gradual deterioration. You can extend the life of your seals with proper lubrication to prevent dry running. Additionally, maintaining appropriate temperatures, controlling contamination, and checking chemical compatibility between seals and system fluids are effective ways to maximize the performance of your seals.
Recognizing the signs of seal failure allows for proactive maintenance that prevents costly equipment damage and unplanned downtime. Regular inspection programs, proper installation practices, and selecting the correct specialty seals for each application create reliability.
CTA: Tired of seals wearing out so fast? You might be in need of specialty seals. Get in touch today.
Your phone case, the pen you’ve clicked three times in your hand, even the wrapper from that snack you swore you weren’t going to cave to. It is everywhere, but rarely does anyone stop to ask how it actually gets made. It is a surprisingly detailed process, and it shapes everything from water bottles to specialty seals used in heavy machinery and thermoplastic mechanical components.
Raw Materials
Most plastics begin with oil or natural gas pulled from deep underground. These fuels aren’t just burned for energy. They are broken down and refined into lighter parts that serve as the starting point for plastic. Petroleum-based plastics still dominate the market, but some companies are pushing plant-based plastics for a greener approach.
Building a Foundation
This stage of plastic production is similar to that unit in science class you took about how atoms bond together to form molecules. This differs in that it happens on an industrial scale with large equipment running around the clock. After oil or natural gas goes through refining, it is broken down into smaller, simpler molecules called monomers.
Two key players in this process are the monomers ethylene and propylene. They act as the raw building blocks for a large range of plastics. Independently, they may seem unimpressive. They lack the strength or shape you’d expect from something like a plastic bottle or car bumper. However, once these monomers undergo further processing, they can link together in repeating chains. The chains become polymers, and that’s when the material begins to take the strength and versatility recognized in plastic products.
Polymerization
This is the stage where joining takes place, the heart of plastic production. Different polymers are used to make different products:
Polyethylene is what grocery bags and film wrap are composed of.
Polypropylene can be found in food containers, medical devices, and engineered thermoplastic mechanical components.
Polystyrene, though a less popular option available, is used in manufacturing, packaging, and insulation.
Manufacturers perform controlled chemical reactions to lock these chains together. The end result is exceptionally different than the gas or oil that it began as.
The Extras
This is the part of the operation where characterizations become more distinct through additives. Additives take the form of raw plastic pellets called resins. These raw pellets do not perform well on their own. To get the final product, manufacturers combine them with additives:
Colorants: Change appearance.
Plasticizers: Make rigid plastics flexible.
Stabilizers: Help resist heat or UV light.
That’s the reason your water bottle feels different from your phone case. Each batch is curated to yield a specific, predetermined result. For example, specialty seals demand plastics that won’t wear down under heat or pressure, just like your pop bottle needs to hold carbonation without leaking.
Shaping the Plastic
Once pellets and additives have been determined and are ready, they are heated and molded into their desired shape. This can be accomplished in a handful of different ways:
Extrusion: typically used to make pipes or straws, the melted plastic is pushed through a mold.
Injection molding: plastic is heated in the hopper of the press, then injected into a mold, and then cooled. This method is generally used for making toys, bottle caps, or automobile parts like coolant fans.
Blow molding: utilizes air pressure to form hollow shapes like your water bottle.
Coming Together
Plastic passes through stages, from cornfields to resin, until it lands in your hands. Beginning as raw fuels, then monomers, then polymers, additives, and shaping. This chain is the process by which plastic is created.
If you take a minute to look around the room right now, you are sure to find more plastic than you realized. Plastic is an important part of daily life, and the process from which it is made is interesting.
Learn how thermoplastic components can outlast the roughest conditions. Contact us today!
How profitable is injection molding? It’s a question asked by entrepreneurs, manufacturers, and curious engineers alike. Whether you’re considering starting your own production line or just exploring cost-effective ways to create custom parts, injection molding is often at the center of the conversation, and for good reason.
This process has been a go-to solution for decades across a range of different industries, from automotive to aerospace. When it comes to specialty seals and other precision components, injection molding offers not only precision and speed but also significant profit potential when executed correctly.
How Profitable Is Injection Molding?
At its core, injection molding is profitable because it allows you to produce large quantities of high-quality parts at a relatively low per-unit cost. While the up-front tooling investment can be substantial, that cost quickly diminishes over high-volume runs, where savings and efficiency skyrocket.
What this means is that, if you’re creating parts such as specialty seals, gaskets, or custom components, the ability to produce thousands (or even millions) of consistent, durable pieces can significantly improve your bottom line. With the advancement of automation and the use of advanced materials, the process continues to become faster and more cost-efficient.
So, is injection molding profitable? In a word: absolutely. However, the true answer depends on the volume, complexity, and how effectively you manage your materials and production processes.
Factors That Impact Profitability in Injection Molding
The profitability of your injection molding efforts isn’t just about making parts, but rather, about how smartly you set up the system. These are some of the key factors that make or break your margins:
Upfront Tooling Costs vs. Long-Term Savings
Mold creation can cost thousands, but it’s a one-time investment
The higher your production volume, the lower your cost per part
Complex designs require more intricate molds, raising startup costs
Material Selection Matters
Thermoplastics and elastomers come at different price points
Waste can be minimized with proper mold design and recycling practices
For specialty seals, material performance is key, offering higher cost, but higher reliability
Cycle Time and Automation
Faster cycle times = more parts per hour
Robotic automation reduces labor costs and increases consistency
Efficient mold cooling and ejection systems improve throughput
Product Complexity and Tolerances
Simple shapes are faster and cheaper to produce
Tight tolerances (often needed for seals and aerospace parts) require extra precision
Higher precision often means higher quality and better profitability in niche markets
Is Injection Molding Right for Low-Volume Runs?
While high-volume production is where injection molding shines brightest, the game is changing. Thanks to rapid tooling, small-batch or custom-mold production is more accessible than ever. For businesses that require limited runs of specialty seals or unique designs, low-volume injection molding still offers:
Faster turnaround than traditional machining
High part consistency, even in small batches
The ability to test and tweak before full-scale production
It’s not just about mass production anymore—profitability can also come from precision, speed, and innovation.
Niche Applications Can Drive Higher Margins
One of the smartest ways to maximize profitability is by targeting specialized applications. At Real Seal, we’ve seen firsthand how custom-molded components—particularly specialty seals used in critical environments—can command higher margins due to their performance requirements and specialized materials.
Industries like medical, where sterility and precision are non-negotiable; aerospace, where extreme temperature and pressure resistance are crucial; and oil and gas, where seals are exposed to highly corrosive environments, all rely on expertly engineered molded parts that are difficult to replicate without precision tooling. That level of specialization not only adds value but also increases profitability.
Ready to Boost Profitability with Injection Molding?
If you’re looking to explore the full potential of injection molding for specialty seals or other custom components, contact Real Seal today. Our team is here to help you plan smarter, build better, and mold your way to greater profitability.
In recent years, the industrial landscape has undergone a rapid evolution to accommodate not only performance and efficiency but also environmental responsibility. In particular, the seal manufacturing industry, which has long been associated with high precision, durability, and specialized materials, has been working to meet the increasing demand for greener spaces. Specialty seals, for instance, which are known for their ability to withstand extreme conditions, play an important role in different industries such as pharmaceuticals, automotive, oil and gas, and aerospace. As the demand for these products rises, manufacturers are also trying to figure out how seals can be more sustainable without compromising quality and performance. Are recycling and sustainability in seal manufacturing possible?
Recycling and Sustainability in Seal Manufacturing
Traditionally, seal manufacturing involves the use of high-performance polymers, rubbers, and metals. These materials are often resistant to pressure, chemicals, and temperature. However, they are also often non-biodegradable and require considerable energy to manufacture. Waste generation, volatile organic compounds, emissions, and the environmental impact of sourcing raw materials are some of the common problems in the industry.
Sustainable Materials and Eco-Friendly Alternatives
One of the most important developments in sustainable seal production is the development of eco-friendly materials. Manufacturers continue to experiment with recycled elastomers, thermoplastics, and bio-based polymers. Alternatives like these reduce dependence on virgin fossil-based resources while maintaining a decreased overall carbon footprint for the final product.
For instance, some companies have begun using processed fluorocarbon materials in O-rings and gaskets, which maintain high chemical resistance while minimizing environmental impact. There is no problem with specialty seals made from recycled or renewable materials, as they still meet rigorous industry standards. This demonstrates that quality performance and sustainability can coexist.
Closed Loop Manufacturing Systems
The adoption of a closed-loop system is a promising initiative in sustainable seal manufacturing.
This process involves collecting and reprocessing production scrap, trimmings, and defective parts. These are then reintegrated into the manufacturing process. This results in the reduction of waste sent to landfills and the decrease in the need for new raw materials.
Some manufacturers work with clients to collect used seals for recycling or safe disposal. This prolongs the life cycle of the materials and promotes a circular economy.
Energy Efficiency and Reduced Emissions
When it comes to seal manufacturing, sustainability is not just about materials. It is also about energy. Companies are retrofitting their production lines with energy-efficient machinery. Additionally, they employ lean manufacturing techniques to reduce energy consumption. Processes such as curing and molding also help reduce greenhouse gas emissions and shorten production times.
The use of water-based lubricants and cleaning agents minimizes the release of VOCs during the manufacturing process.
Digital Innovation and Sustainable Design
Advanced simulation tools and computer-aided design (CAD) allow for the optimization of seal geometry and material use before actual production. As a result, there is less prototyping, fewer material trials, and reduced waste.
Educating Clients
Sustainability in seal manufacturing requires transparency and collaboration with suppliers to ensure that they purchase raw materials that meet sustainability standards. Clients should also be educated about the benefits of using recycled or sustainable seals. It is important to find ways to encourage their participation in product return and recycling programs.
Explore Your Seal Options Today
Environmental concerns continue to rise. This has led industries that rely on high-performance components, such as specialty seals, to be more responsible in the way they innovate. From energy-efficient production and circular supply chains to digital optimization, the seal manufacturing industry is embracing sustainable practices without ever sacrificing function or quality. Even in the applications that necessitate durable thermoset rubber materials, manufacturers are exploring more sustainable options when it comes to production and end-of-life.
If you are looking for high-performance seals that are engineered to meet the highest industry standards, check out our website today.
